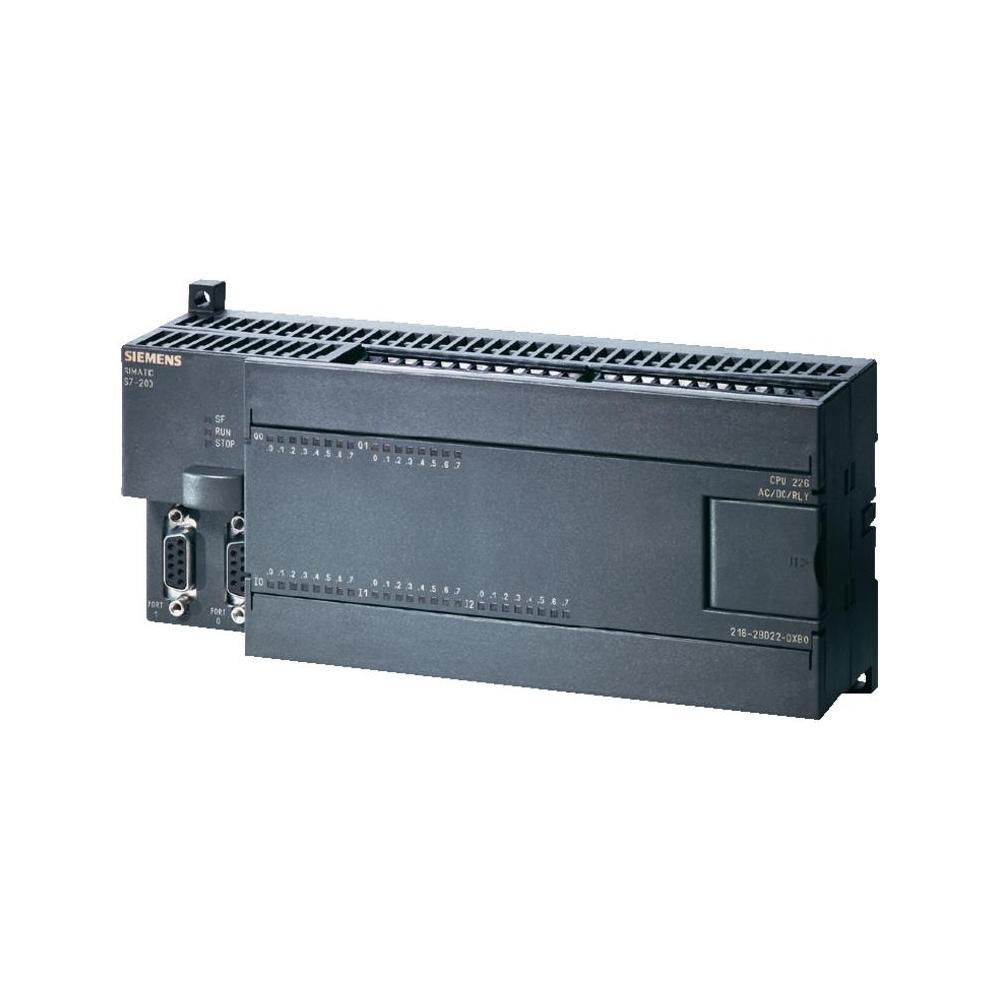

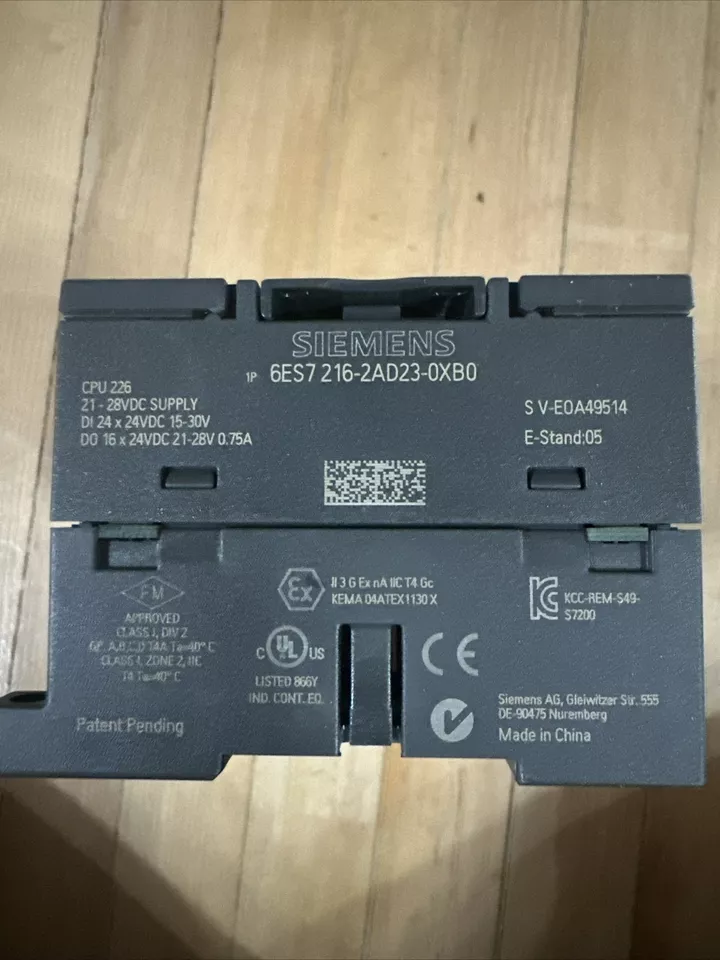

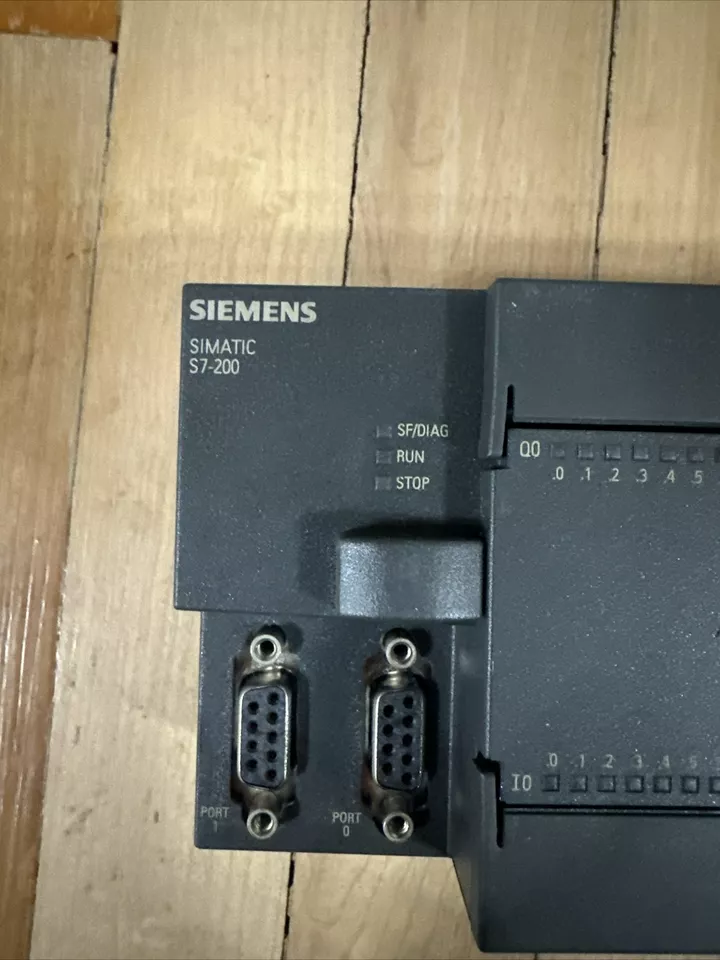

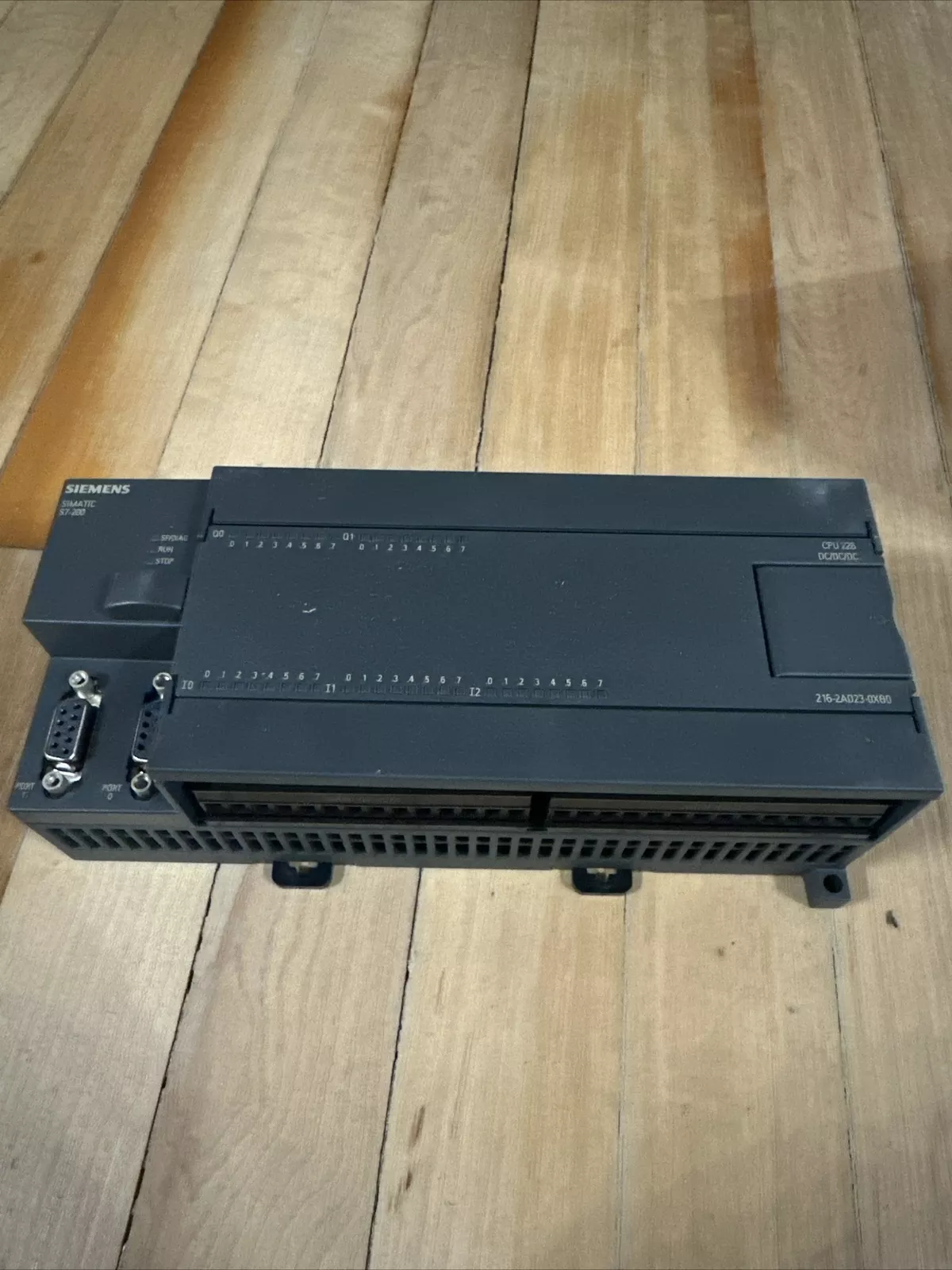

Siemens 6ES7 216-2AD23-0XB0 PLC/Simatic S7-200, Cpu 226 Ap

Original price was: 240.00 $.Current price is: 120.00 $.

Details:



Functionality:

  • MPI Yes; As MPI slave for data exchange with MPI masters (S7- 300/S7-400 CPUs, OPs, TDs, Push Button Panels); S7-200- internal CPU/CPU communication is possible in the MPI network with restrictions; transmission rates: 19.2/187.5 kbit/s
  • PPI Yes; with PPI protocol for program functions, HMI functions (TD 200, OP), S7-200-internal CPU/CPU communication; transmission rates 9.6/19.2/187.5 kbit/s
  • Serial data exchange: Yes; As freely programmable interface with interrupt facility for serial data exchange with third-party devices with ASCII protocol transfer rates: 1.2 / 2.4 / 4.8 / 9.6 / 19.2 / 38.4 / 57.6 / 115.2 kbps; the PC/PPI cable can also be used as RS 232/RS 485 converter



Number of counters:

  • 6; High-speed counters (30 kHz each), 32 bits (incl. sign), can be used as up/down counters or for connecting 2 incremental encoders with 2 pulse trains offset by 90° (max. 20 kHz (A/B counters)); parameterizable enable and reset input; interrupt facilities (incl. call of subroutine with any content) when the setpoint is reached; reversal in counting direction, etc.
  • Number of pulse outputs 2; High-speed outputs, 20 kHz, with interrupt option; pulse-width and frequency modulation option



Output delay with resistive load:

  • “0” to “1”, max. 15 μs; of the standard outputs, max. (Q 0.2 to Q 1.1) 2 μs; of the pulse outputs, max. (Q 0.0 to Q 0.1) 2 μs
  • “1” to “0”, max. 130 μs; of the standard outputs, max. (Q 0.2 to Q 1.1) 10 μs; of the pulse outputs, max. (Q 0.0 to Q 0.1) 10 μs
Add to wishlist

Description

Brand Siemens
Manufacturer Series S7-200
Number Of Digital Inputs 24
As-interface Inputs/Outputs, Max. 62; As-interface A/B Slaves (Cp 243-2)
Digital Inputs/Outputs, Max. 148; Max. 128 Inputs And 120 Outputs (Cpu+Em)
Analog Inputs/Outputs, Max. 35; Max. 28 Inputs And 7 Outputs (Em) Or Max. 0 Inputs And 14 Outputs (Em)
Cable Length Shielded, Max. 500 m; Standard input: 500 m, high-speed counters: 50 m
Cable Length Unshielded, Max. 300 m; not for high-speed signals
Switching Capacity Of The Outputs On Lamp Load, Max. 5 W
Switching Capacity Of The Outputs With Resistive Load, Max. 0.75 A
Limitation Of Inductive Shutdown Voltage To 1 W
Number Of Digital Outputs 16; Transistor
Data Areas And Their Retentivity Flag Number, Max. 32 byte
Battery Backup Time, Max. 100 h; (min. 70 h at 40 DegreeC); 200 days (typ.) with optional battery module
Load Voltage Permissible Range, Upper Limit (Dc) 28.8 V
Load Voltage Permissible Range, Lower Limit (DC) 20.4 V
Load Voltage L+ Rated Value (DC) 24 V
Inrush Input Current, Max. 10 A; at 28.8 V
Input Current From Supply Voltage L+, Max. 1 050 mA; 150 mA to 1 050 mA output current for expansion modules (5 V DC) 1 000 mA
Work Memory Integrated (For Data) 10 kbyte
Work Memory Integrated (For Program) 24 kbyte; 16 KB with active run-time edit
Encoder Supply Output Current, Max 400 mA
Encoder Supply Short-Circuit Protection Yes; Electronic at 400 mA
Part Number 6ES7216-2AD23-0XB0
