$4,000.00 Original price was: $4,000.00.$2,000.00Current price is: $2,000.00.
Details:

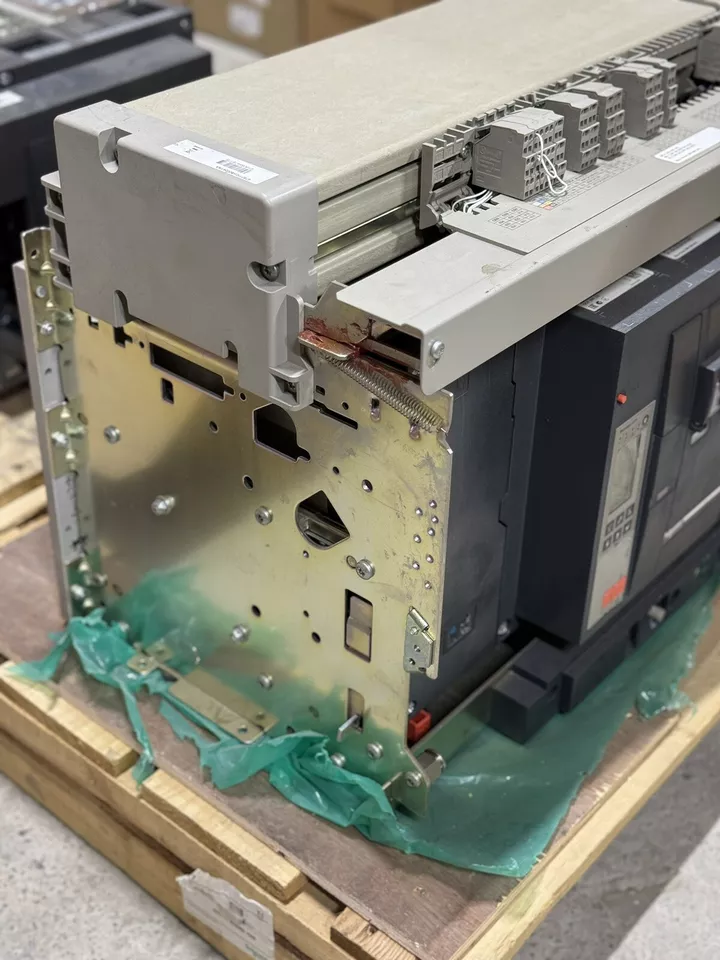

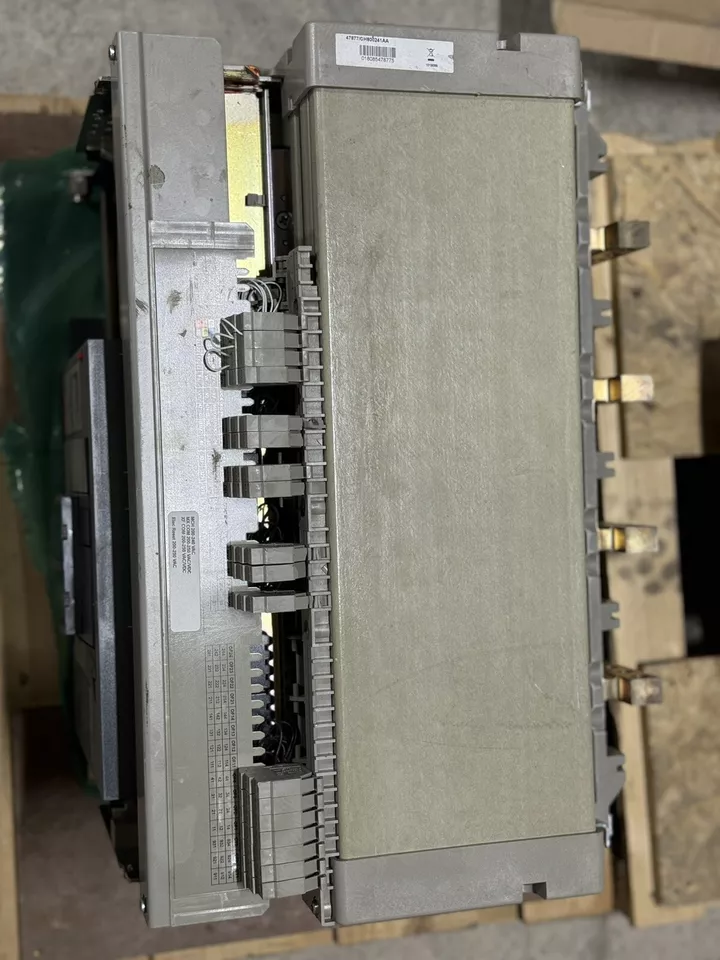

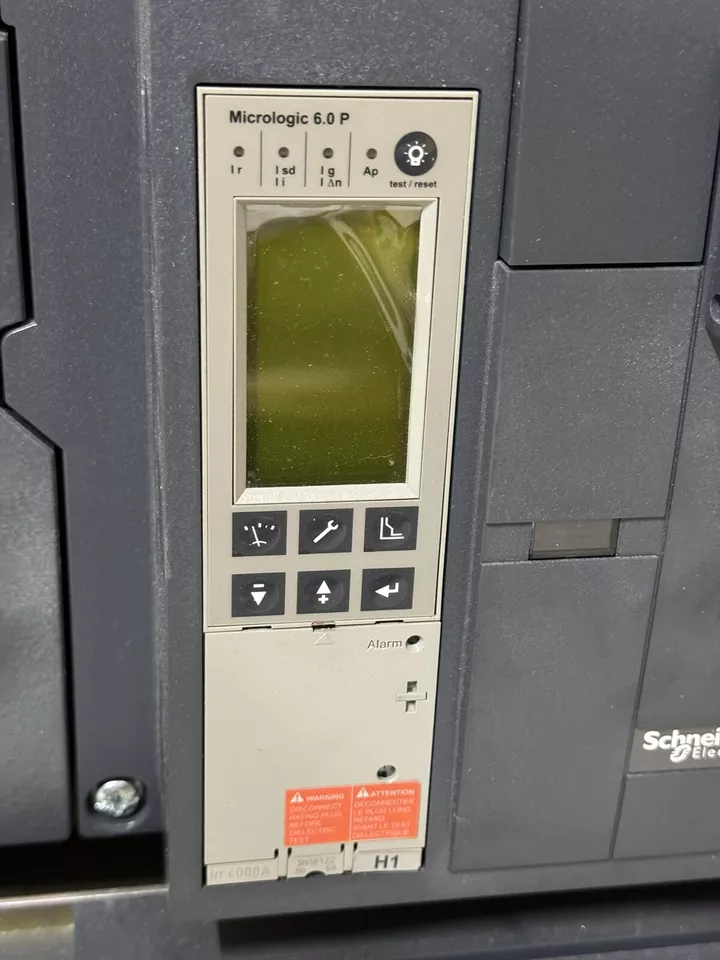

circuit breaker Masterpact NW40H2 – 4000 A – 3 poles – fixed – w/o trip unit
Weight | 500000 kg |
---|---|
Dimensions | 29.7 × 42.2 × 35.2 cm |
Range | MasterPacT |
Product name | MasterPact NW |
Circuit breaker name | MasterPact NW40H2 |
product or component type | Circuit breaker |
Device application | Power distribution protection |
Poles description | 3P |
Control unit | Without control unit |
[In] rated current | 4000 A at 40 °C |
Performance type | H2 100 kA 440 V AC |
[Ue] rated operational voltage | 690 V AC 50/60 Hz |
Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
Selectivity category | Category B |
Control type | Push-button |
Mounting mode | Fixed |
[Icu] rated ultimate short-circuit breaking capacity | 100 kA at 220/415 V AC 50/60 Hz
100 kA at 440 V AC 50/60 Hz 85 kA at 525 V AC 50/60 Hz 85 kA at 690 V AC 50/60 Hz |
[Ics] rated service breaking capacity | 100 kA at 220/415 V AC 50/60 Hz
100 kA at 440 V AC 50/60 Hz 85 kA at 525 V AC 50/60 Hz 85 kA at 690 V AC 50/60 Hz |
[Icw] rated short-time withstand current | 85 kA 1 s
75 kA 3 s |
[Icm] rated short-circuit making capacity | 220 kA 220/415 V AC at 50/60 Hz
187 kA 440 V AC at 50/60 Hz 187 kA 525 V AC at 50/60 Hz 187 kA 690 V AC at 50/60 Hz |
Integrated instantaneous protection (DIN in kA peak) | 171…209 kA |
Sensor rating | 2000 A
4000 A |
[Ui] rated insulation voltage | 1000 V AC 50/60 Hz |
[Uimp] rated impulse withstand voltage | 12 kV |
Power dissipation in W | 650 W |
Maximum breaking time | 25 ms |
Maximum closing response time | 70 ms |
Mounting support | Backplate
Rails |
Upside connection | Rear |
downside connection | Rear |
Connection pitch | 150 mm |
Mechanical durability | 10000 cycles without maintenance
20000 cycles with maintenance |
Electrical durability | 5000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2
2500 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2 AC-23A: 5000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3 AC-23A: 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3 AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3 |
Height | 352 mm |
Width | 422 mm |
Depth | 297 mm |
net weight | 50 kg |
Standards | EN/IEC 60947-1
EN/IEC 60947-2 |
Product certifications | CE
CCC EAC |
