Schneider Electric Master Pact NW08H14PEDO6.0P

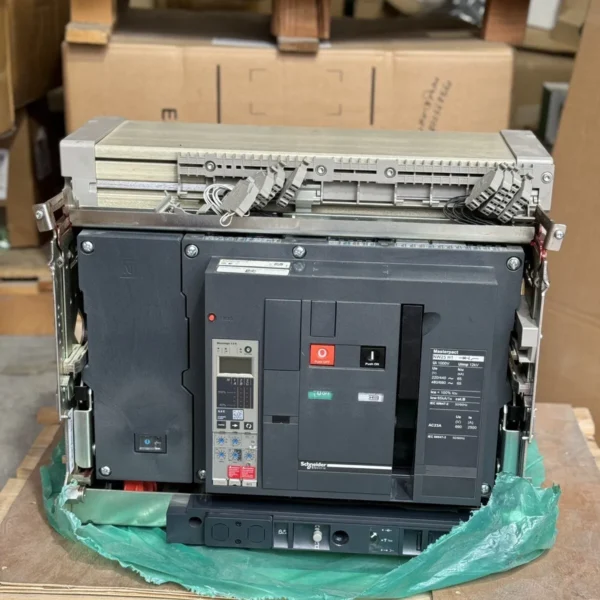

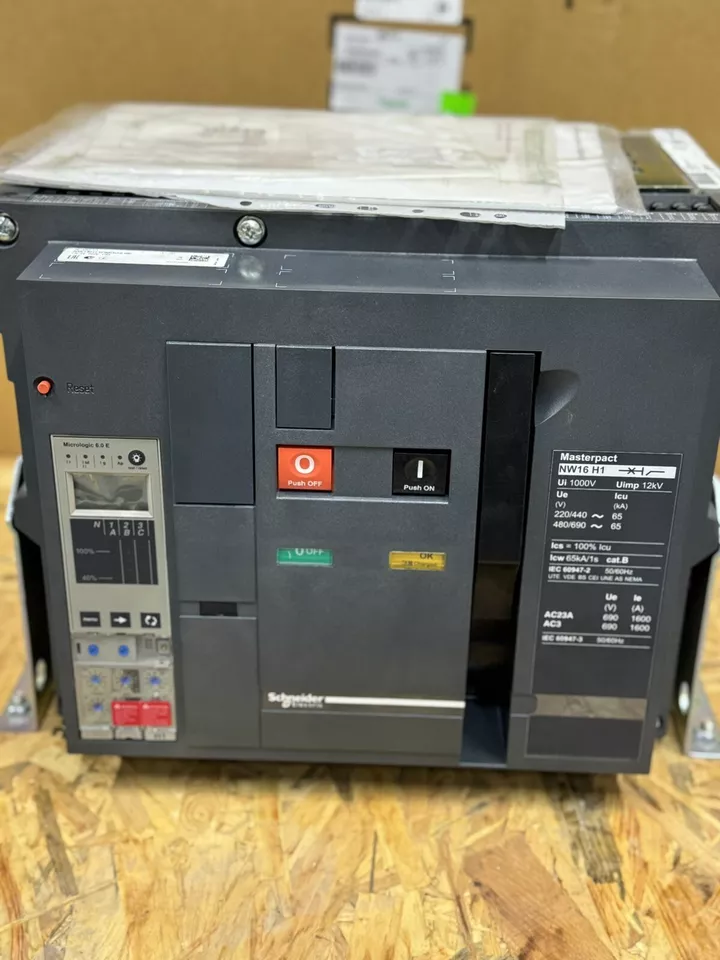

MasterPact NW is a comprehensive range of air circuit breakers designed to protect electrical systems from damage caused by overloads, short circuits, and equipment ground faults. Embedding MicroLogic control units contributes to safety and energy efficiency. The range covers ratings from 800 to 6300 A in two different sizes.

• Nominal current:800 to 6300 A
• Breaking performance:42 to 150 kA at 220/415 V AC
• Voltage rating: up to 690 V
• 2 physical sizes from 800 to 6300 A
• A single pole pitch of 115 mm
• 3 and 4-pole versions
• 4 Micrologic control units enriched by measurement, energy management, and network analysis functions
•  Earth leakage protection built into electronic protection Wide range of common auxiliaries and accessories interchangeable on-site
• Compliance with international standards IEC 60947-1 and 2, IEC 68230 for type 2 tropicalization, UL489, ANSI, and CCC

• Compliance with specifications of marine classification companies: Bureau Veritas, Lloyd’s Register of Shipping, Det Norske Veritas, etc.

BenefitsNo other offer will overshadow them The Masterpact NW circuit-breaker range is characterized by its optimized dimensions: not only are volumes reduced, but, even more, two sizes are sufficient to cover needs from 4000 to 6300 A. Aiming at standardizing electrical switchboards at a time when installations are increasingly complex, Masterpact NW provides an unequaled simplicity, both concerning choice and installation.ApplicationsProtection, measurement, and communication of LV electrical networks and in particular:

• Motor protection

• Generator protection



Specific applications:

• DC networks

• Protection of installations in highly corrosive industrial environments

• Tunnels (1000 V)

• Air bases (400 Hz)

• Military Marine
