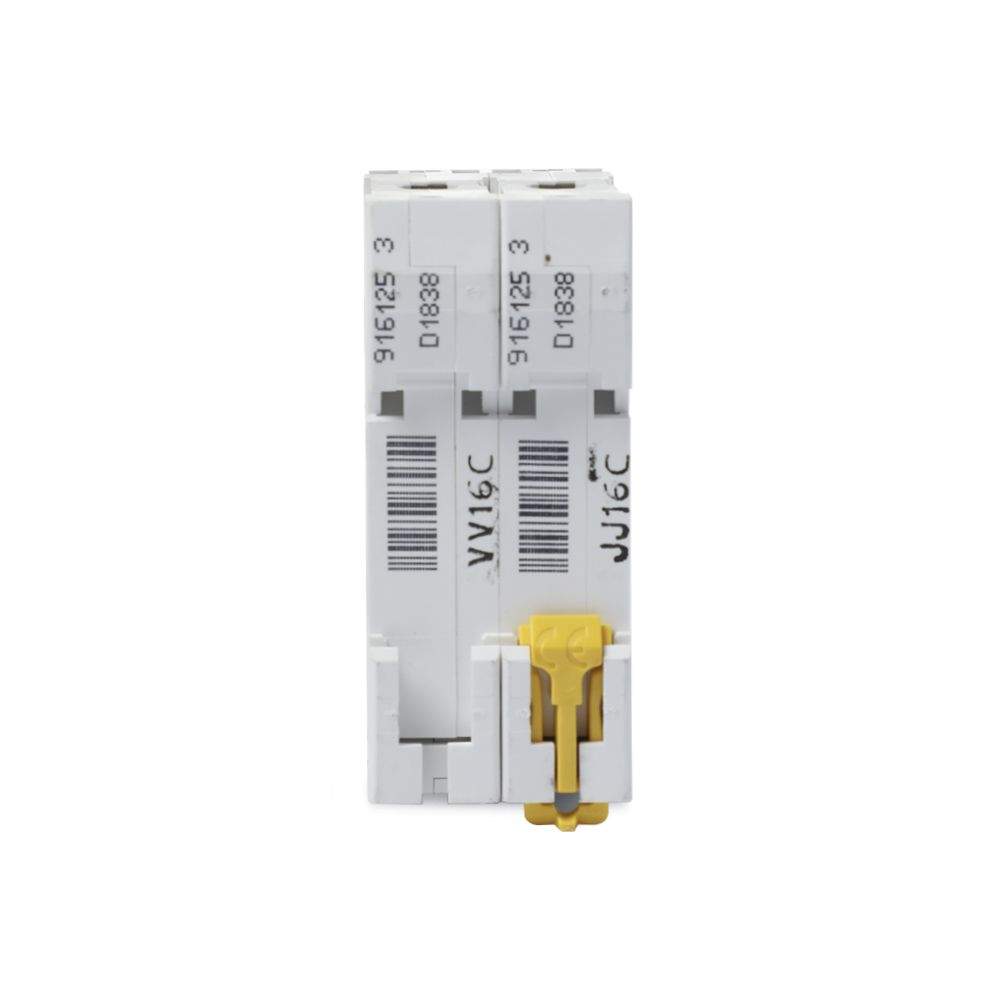

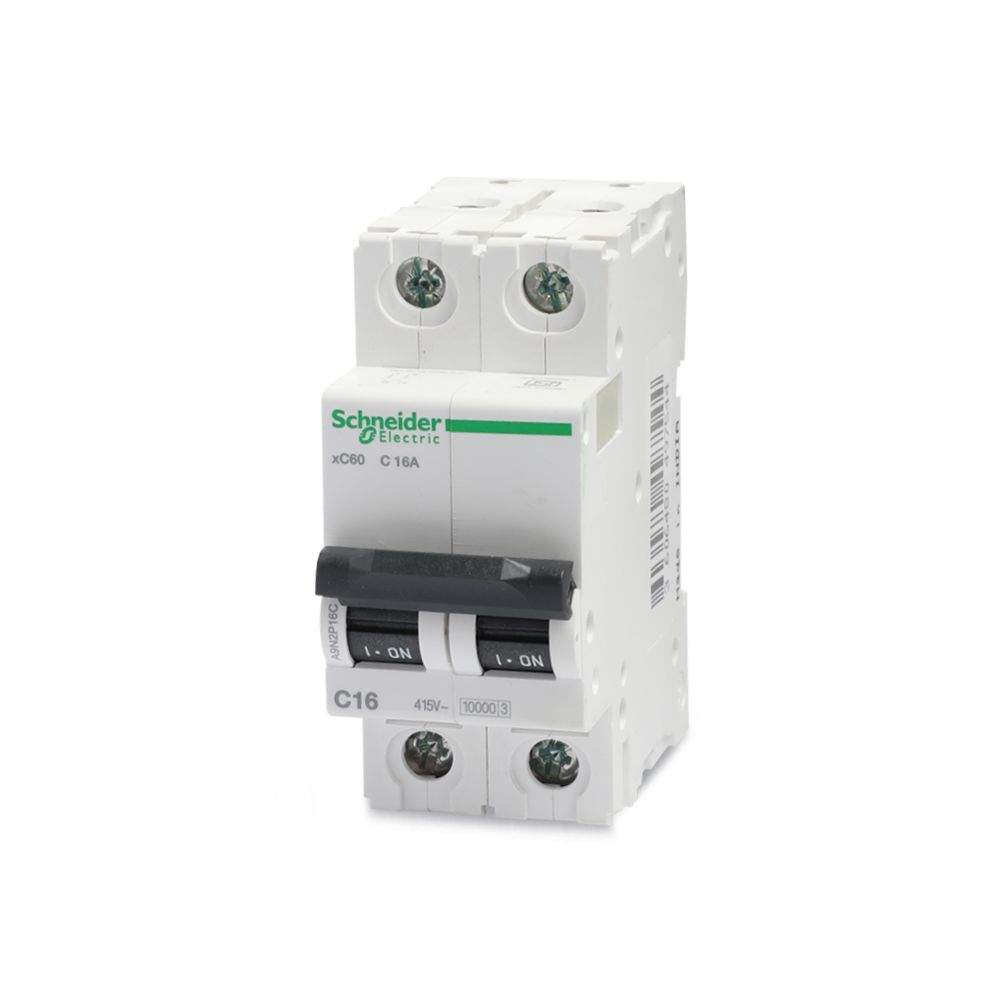

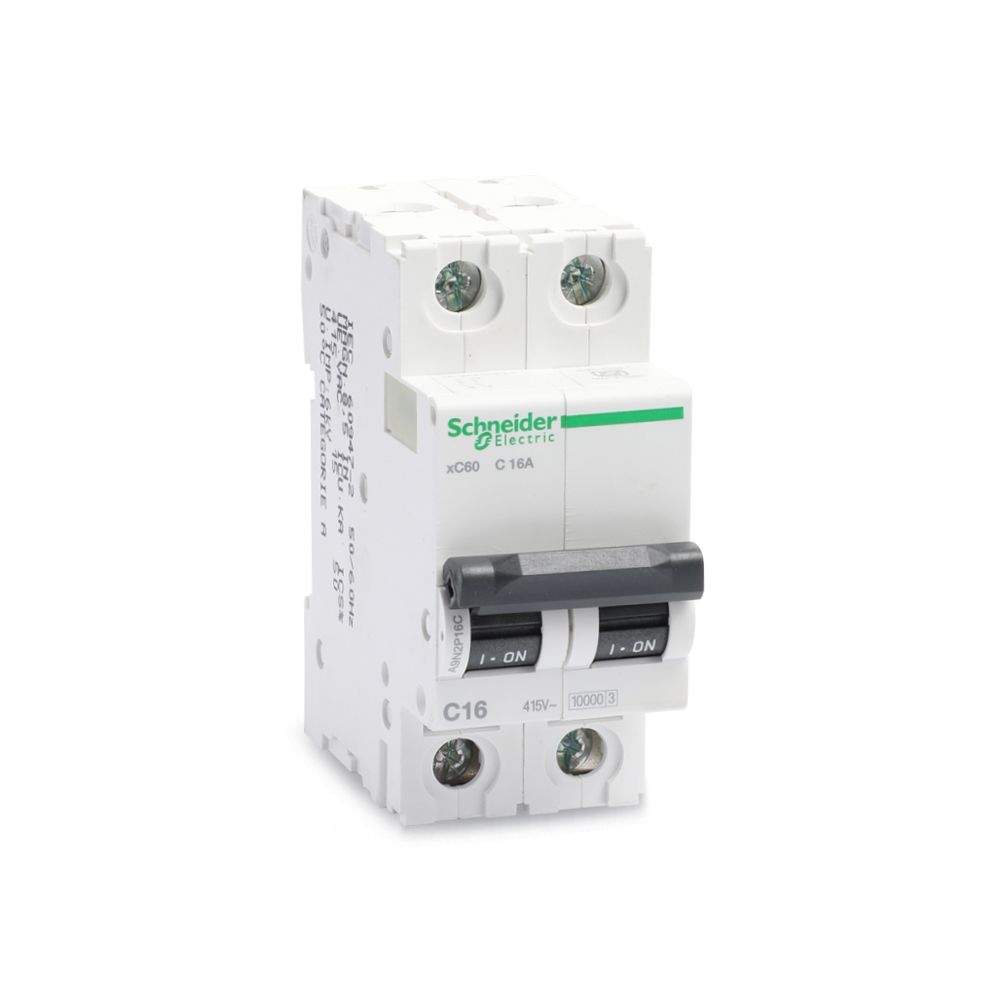

Schneider Electric K60H 16A MCB

This Acti9 K60H product is a low-voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles and 16A In-rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 400VAC conforming to EN/IEC 60898-1 standard and at conforming to the standard. This product is compliant with EN/IEC 60898-1 standard. This miniature circuit breaker combines functions of circuit protection against short circuits and overload current, control, and isolation. The connection can be made downstream by biconnect comb busbar. It can be also made upstream/downstream by tunnel terminals. A padlock device is available for work to be carried out on live parts. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ui-rated insulation voltage is 440VAC. The Uimp-rated impulse withstands a voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on a DIN rail for modular installation.
