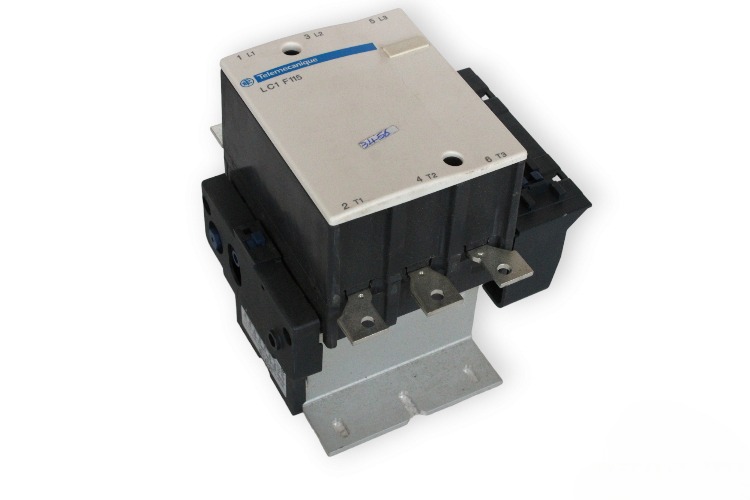

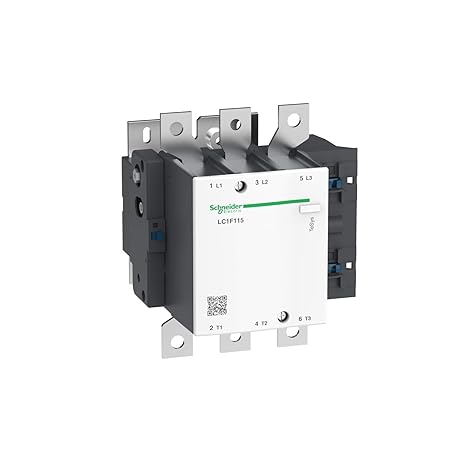

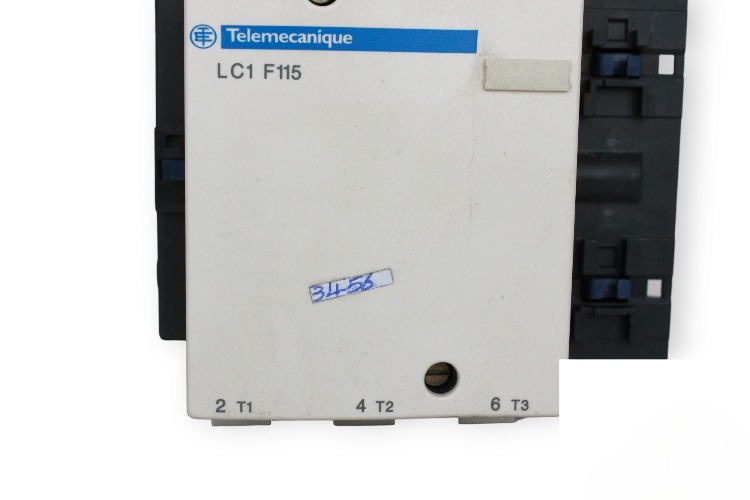

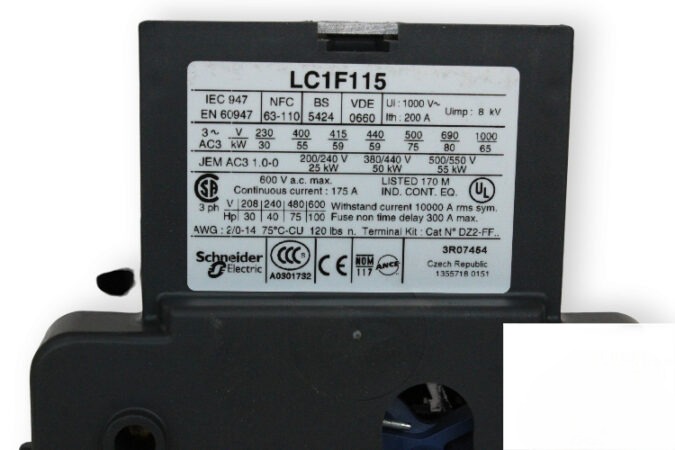

Schneider Electric Contactor Series LC1F115 AC3: 55kW 250A at 400V

Range : TeSys
Product name : TeSys F
Product or Component Type :Contactor
Device short name :LC1F
contactor application : Resistive load Motor control
Poles description :3P
power pole contact composition :3 NO
Mounting Support :Plate
Mechanical durability :10 Mcycles

Irms rated making capacity :1150 A conforming to IEC 60947-4-1
Rated breaking capacity : 920 A conforming to IEC 60947-4-1

Average impedance
0.37 mOhm – Ith 200 A 50 Hz

rated operational current:
200 A 104 °F (40 °C)) <= 440 V AC-1
115 A 131 °F (55 °C)) <= 440 V AC-3

Motor power kW :
55 kW at 380…400 V AC 50/60 Hz (AC-3)
59 kW at 415 V AC 50/60 Hz (AC-3)
59 kW at 440 V AC 50/60 Hz (AC-3)
75 kW at 500 V AC 50/60 Hz (AC-3)
30 kW at 220…240 V AC 50/60 Hz (AC-3)
80 kW at 660…690 V AC 50/60 Hz (AC-3)
18.5 kW at 400 V AC 50/60 Hz (AC-4)

Rated impulse withstand voltage : 8 kV
Overvoltage category : III
conventional free air thermal current :200 A (at 104 °F (40 °C))

Tightening torque :
Power circuit 88.51 lbf.in (10 N.m)
Control circuit 10.62 lbf.in (1.2 N.m)
Control circuit 5.31 lbf.in (0.6 N.m)
