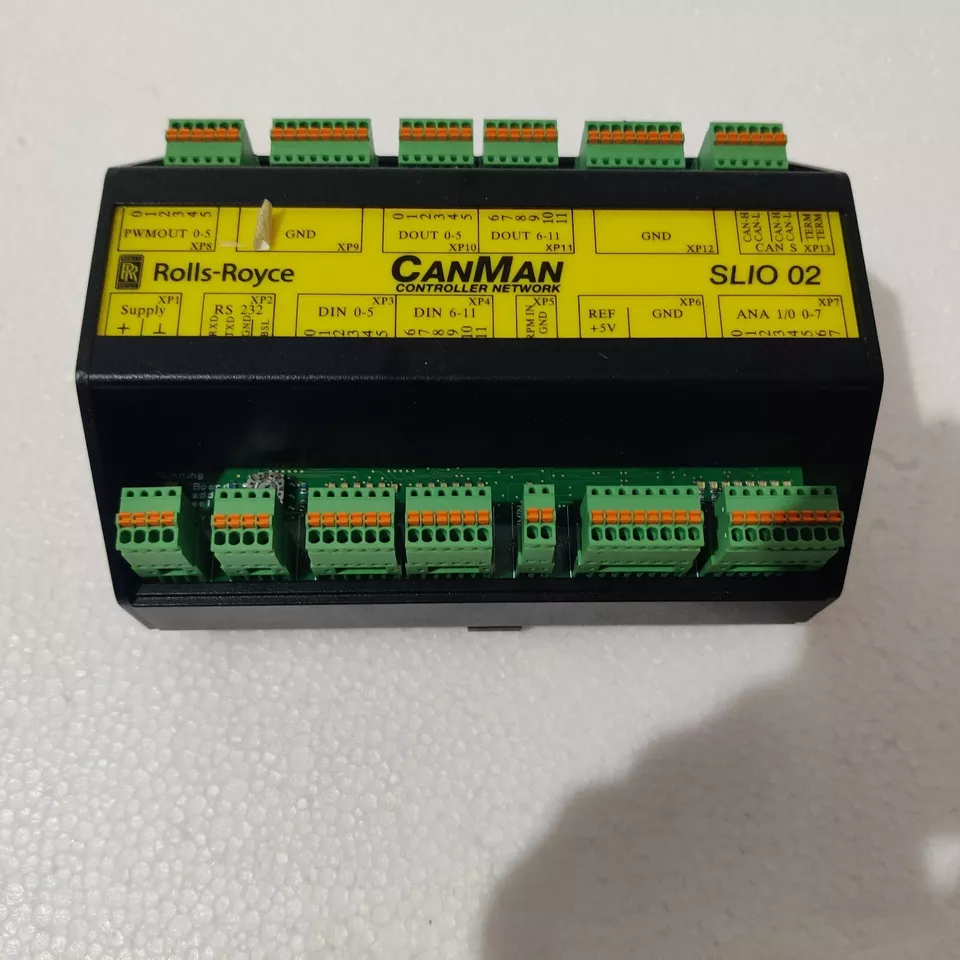

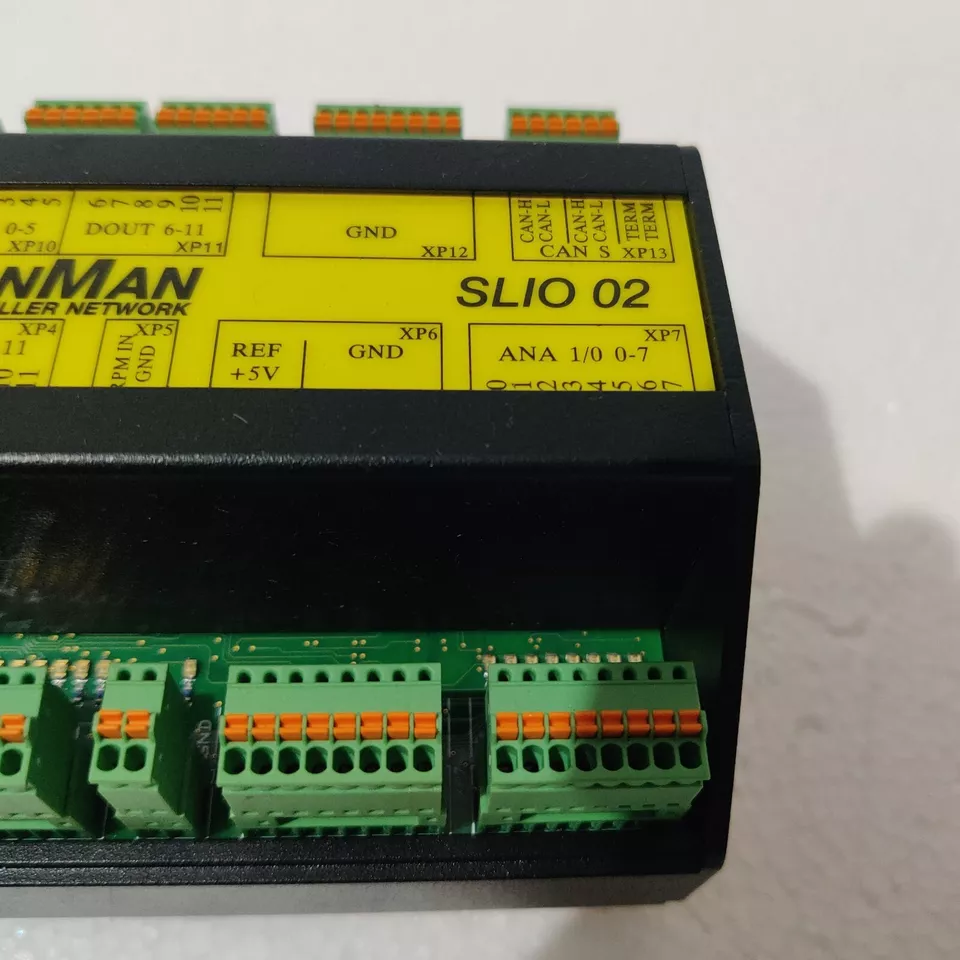

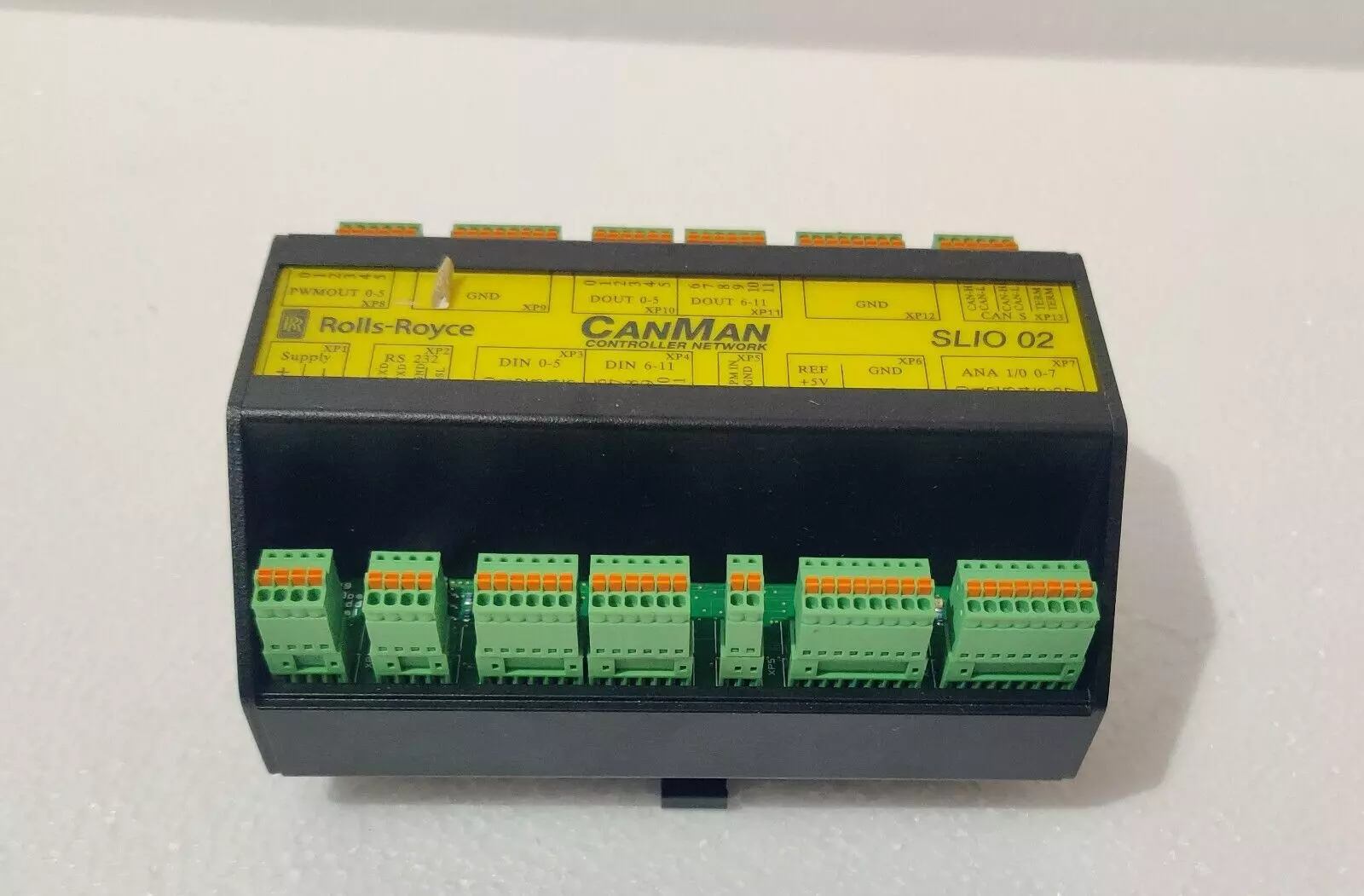

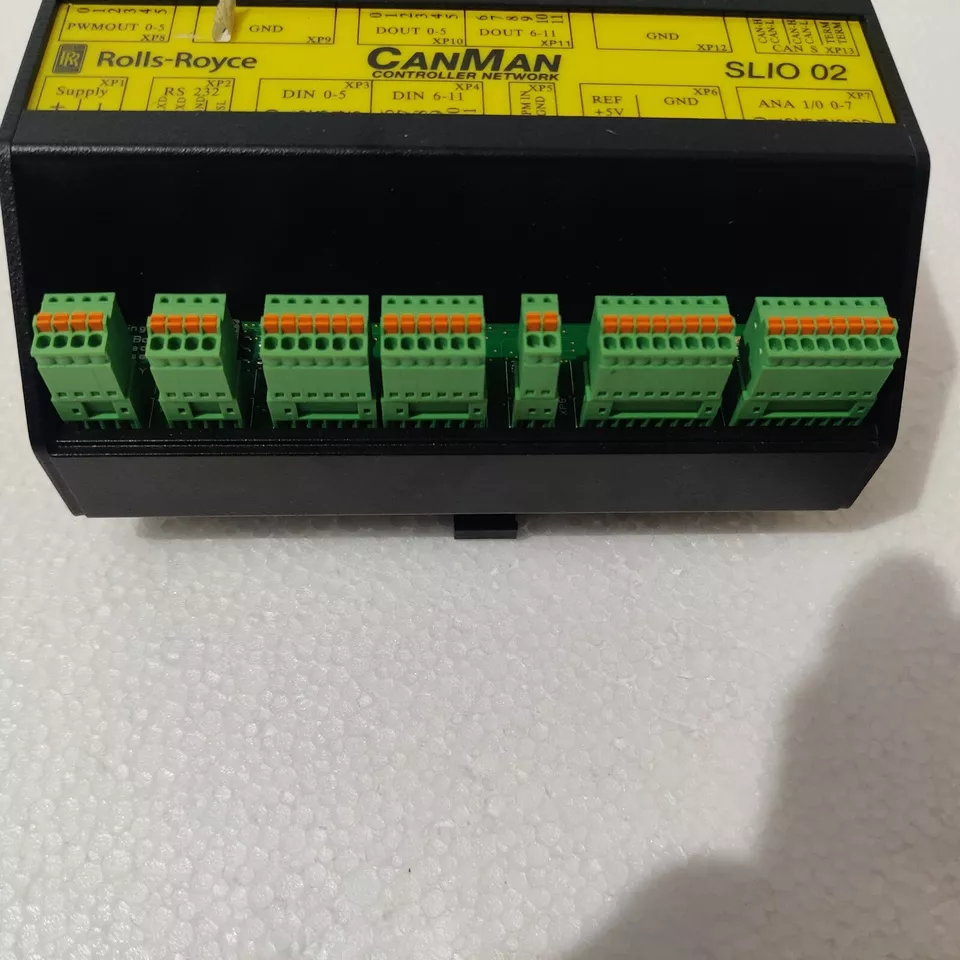

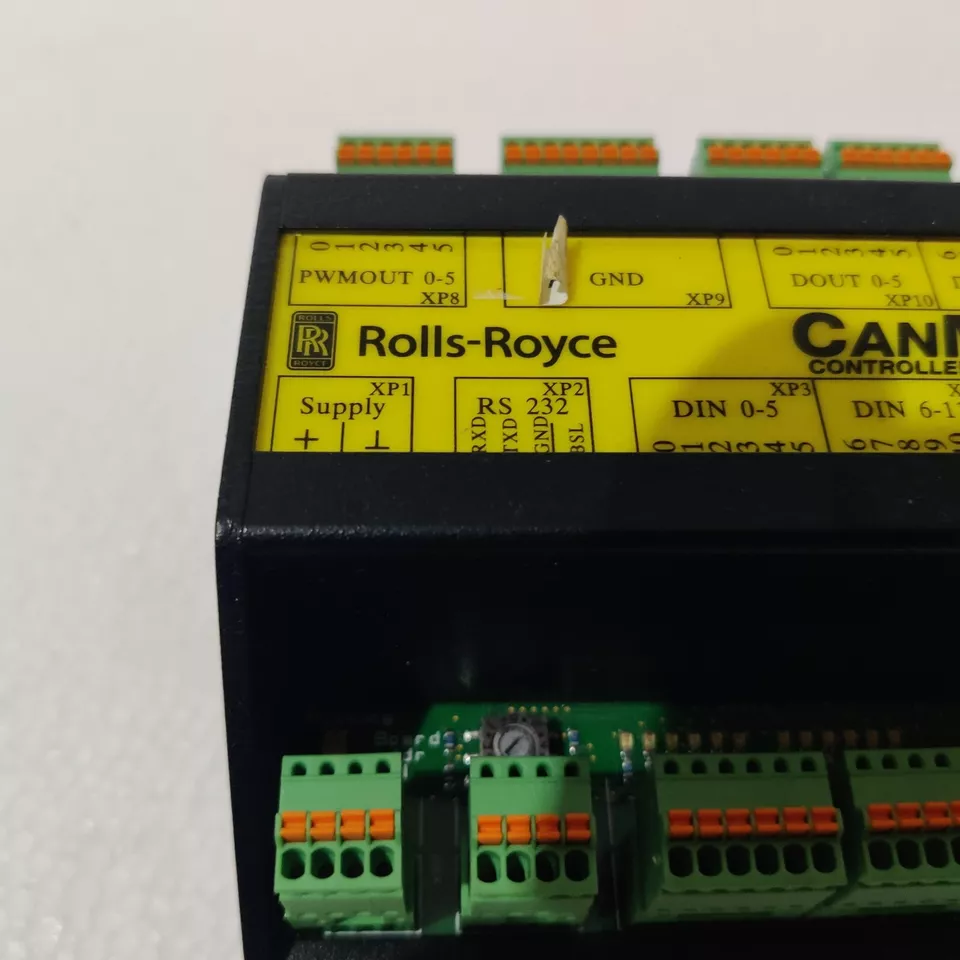

Rolls Royce Slio 02 Canman Controller Network

ROLLS ROYCE MARINE SLIO 02 CANMAN CONTROLLER NETWORK MODULE is used product manufactured by ROLLS-ROYCE MARINE.

SLIO is a common name for the IO-nodes connected to the local CAN bus, the S-bus. There are two types of SLIO nodes, SLIO 01 and SLIO 02. The main difference between them is the IO-configuration. There are also minor differences between the two nodes regarding the software. When changing the CanMan system applications, i.e. the code executing in the CCN nodes, no changes are needed in the SLIO node software. This software is always the same, irrespective of the application in the CCN node.

The SLIO node provides connections for digital input, digital output, analog input, PWM output, PULSE output and frequency measurement.
