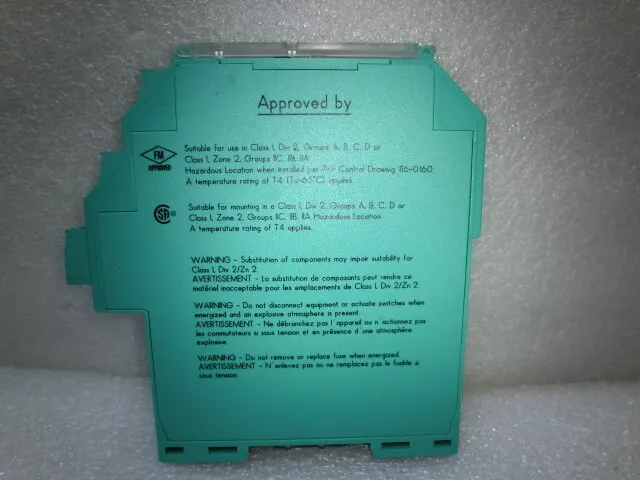

Pepperl Fuchs K-System KFD2-EB2R4AB Power Switch Amplifier

Original price was: 70.00 $.Current price is: 35.00 $.

Details:

The power feed module supplies the Power Rail with a voltage of 24 V DC and a maximum current of 4 A. The device is designed for applications requiring redundant power.

In the event of a device fault or a wiring fault of any isolator on the Power Rail, the collective error messaging relay alerts the controller via a binary I/O point. This relay can be configured as normally-open or normally-closed.

A green LED on the front of the device indicates the power state, and a red LED lights up during a fault condition.

Additionally, the bus implemented in the Power Rail is forwarded to the terminals 13 and 15 for usage with the RS-485 connection of the KFD2-WAC2-Ex1.D device. Terminal 14 is only for test purposes.

In the sense of functional safety (SIL) the device provides no dangerous failures. Thereby the safe condition of the supplied isolators must be defined as the de-energized state. Thus the device will not influence the safety calculation or the SIL value.

This device is compatible with all versions of the Power Rail and provides group fusing.

Weight 100 g
Dimensions 11.5 × 2 × 11.9 cm
Add to wishlist

Description

Supply
Connection terminals 11+, 12-

terminals 8+, 9-
Rated voltage 20 … 30 V DC

The maximum rated operating voltage of the devices plugged onto the Power Rail must not be exceeded.
Fusing 5 AT/250 V AC

recommended maximum utilization of the fuse: 80 %
Power dissipation ≤ 2.4 W
Output
Connection Power Rail
Output current max. 4 A
Output voltage Ui ≥ rated voltage Ur = Ui – 0.6 V
Fault signal relay output: NO contact
Contact loading 30 V AC/ 2 A / cos φ ≥ 0.7 ; 40 V DC/ 2 A
Energized/De-energized delay approx. 20 ms / approx. 20 ms
Indicators/settings
Display elements LEDs
Control elements DIP switch
Configuration via DIP switches
Labeling space for labeling at the front
