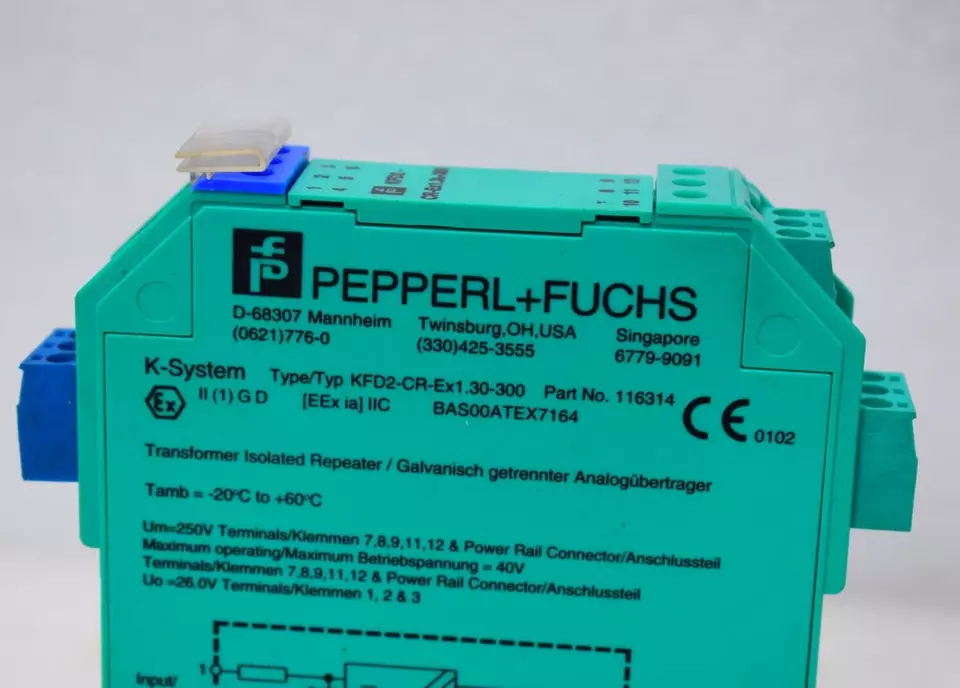

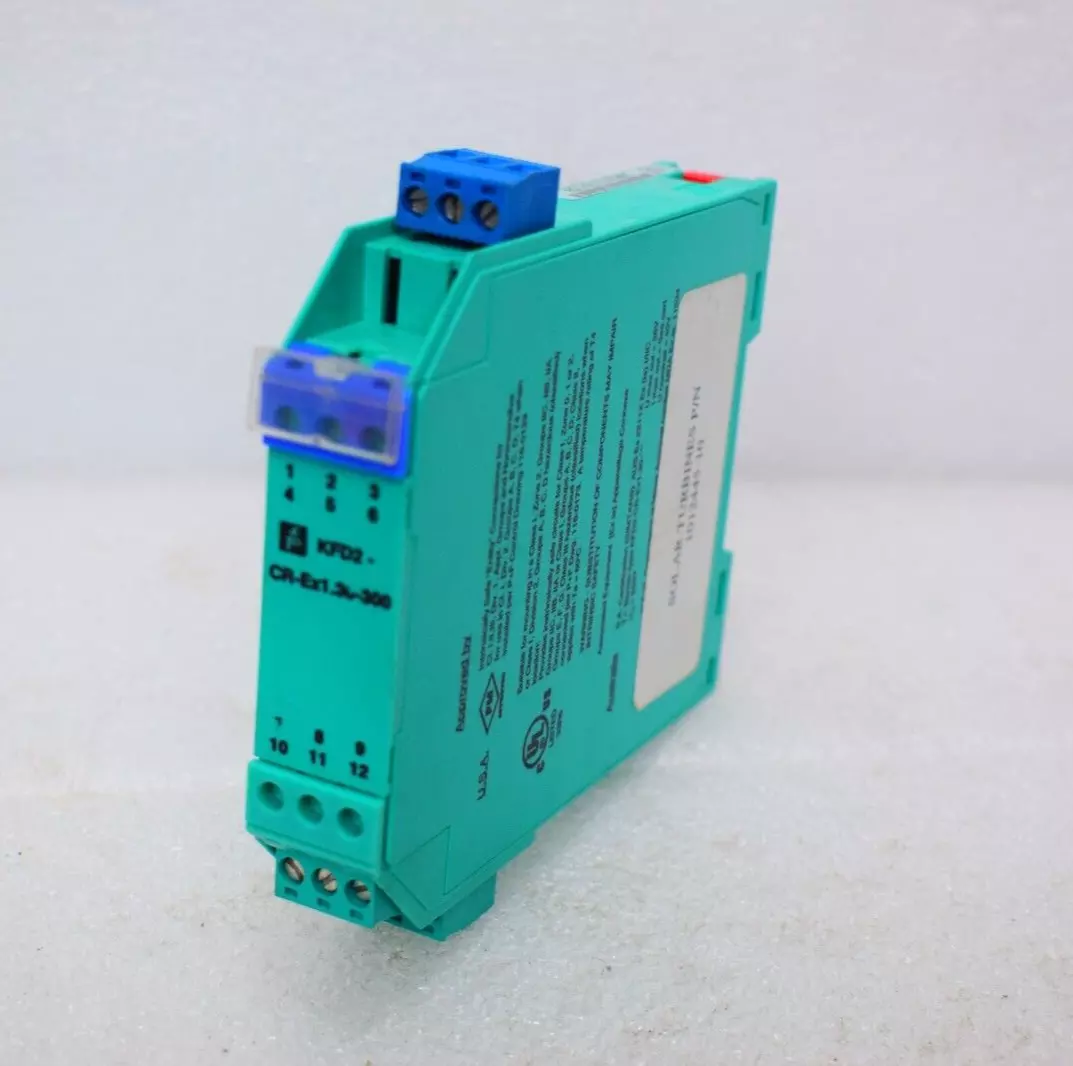

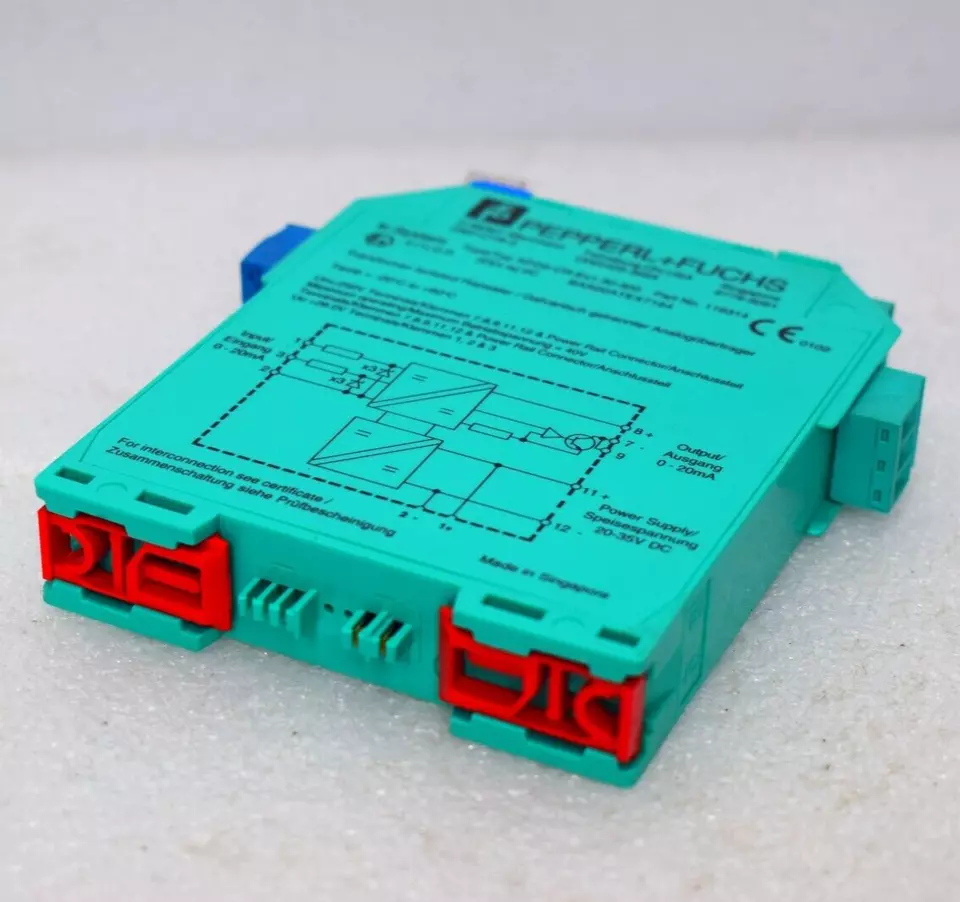

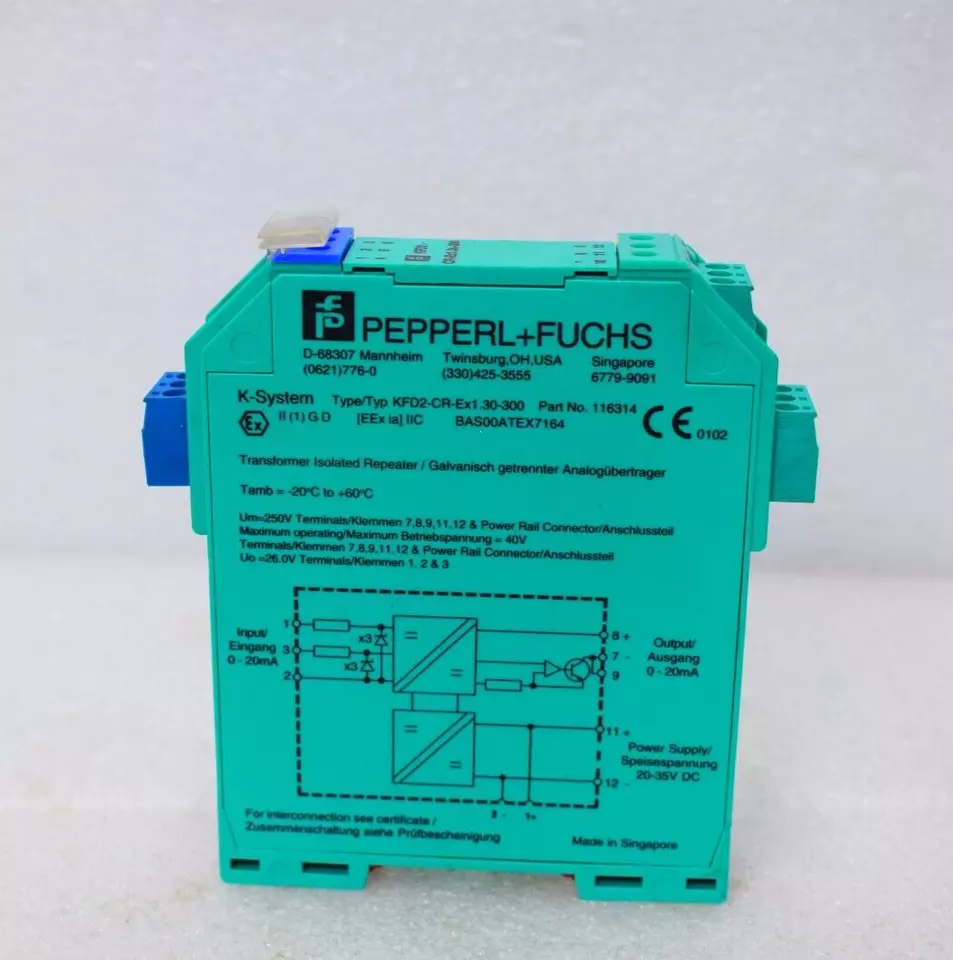

Pepperl Fuchs K-System KFD2-CR-EX1.30-300 transformer Isolated Repeater

Supply



Connection                   Power Rail or terminals 11+, 12-

Rated voltage               20 … 35 V DC

Ripple                           < 20 µArms

Power loss                   1.3 W

Power consumption    approx. 1.8 W



Input



Connection terminals            1+, 2+, 3-

Input resistance                     approx. 220 Ω terminals 2-, 3

Available voltage approx.     16.5 V at 25 mA terminals 1+, 2-

                                                 ≥ 13.6 V at 20 mA terminals 1+, 3-

Output



Connection terminals            7-, 8+, 9-

Load                                        ≤ 1 kΩ

Output signal                         0 … 20 mA

Ripple                                     ≤ 20 µA ss

Available voltage                   20 V DC
