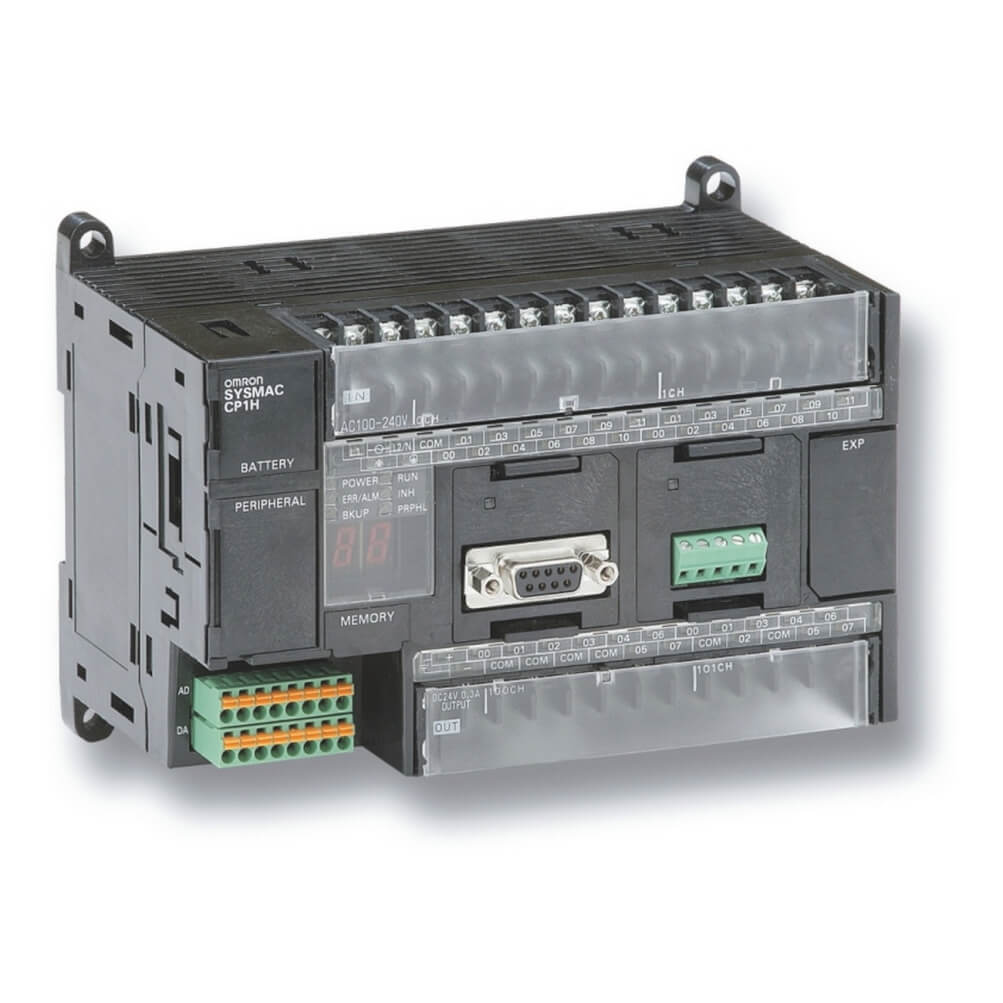

Omron Sysmac CP1H-XA40DT-D Programmable Controller

Original price was: $722.70.Current price is: $525.60.

Details:

PLC, 24 VDC supply, 24 x 24 VDC inputs, 16 x NPN outputs 0.3 A, 4 x analog inputs, 2 x analog outputs, 20K steps program + 32K words data memory
Omron Black Programmable Logic Controller Chassis Mount, DIN Rail 24 VDC, CP1H-X40DT1-D
Omron Black Programmable Logic Controller (PLC) Chassis Mount, DIN Rail 24 VDC, CP1H-X40DT1-D represents a robust and versatile solution for industrial automation needs.

Weight	600 kg
Dimensions	9 × 15 × 8.5 cm

Specifications
Supply voltage type	DC
Number of digital inputs	24
Input type	PNP/NPN
Number of digital outputs	16
Output type	NPN
Program capacity	20 K steps
Data memory capacity	32 K words
Logic execution time	0.10 µs
Communication port(s)	USB
Number of Ethernet ports	0
Number of USB ports	1
Number of RS-232 ports	0
Number of RS-485 ports	0
Communication option(s)	CAN, CompoBus/S Master, CompoBus/S Slave, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485
Number of analog inputs	4
Number of analog outputs	2
Number of encoder input channels	4
Max. encoder input frequency	100 kHz
Max. number of PTP axes	4
Max. pulse output frequency	100 kHz
Max. number of analogue I/O channels	62
Max. number of local I/O points	320
Max. number of expansion units	7
Built-in auxiliary 24 VDC output	0 mA
Operating temperature range	0-55 °C
Product Height (unpacked)	90 mm
Product Width (unpacked)	150 mm
Product Depth (unpacked)	85 mm
Product Weight (unpacked)	600 g
