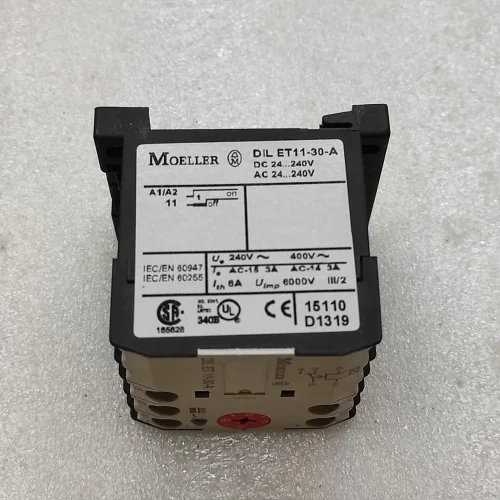

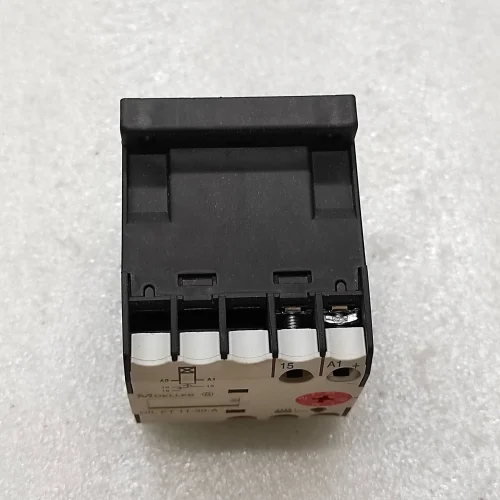

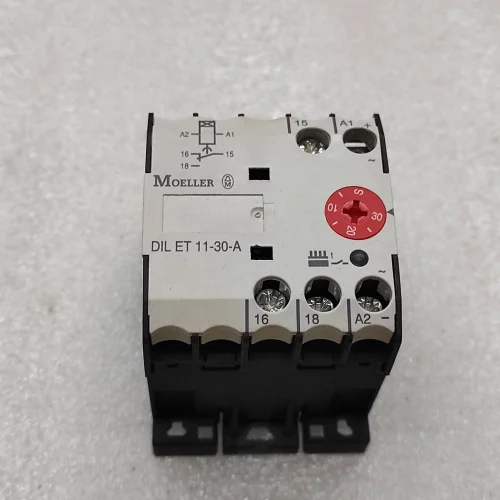

Moeller Dil ET 11-30-A

Descriptions of Moeller DILET11-30-A :

DILET11-30-A – Eaton Cutler-Hammer, (1.5-30SEC) ON-DELAYED TIMING RELAY 24-240VAC/DC

Walker Industrial

Timing Relay On Delay 24-240V AC/DC

Carlton-Bates

TIMER, ON-DELAY; Contact Configuration:2CO; Nom Input Voltage:240V; Delay Time Range:1.5s to 30s; Relay Mounting:DIN Rail; SVHC:No SVHC (15-Dec-2010); Approval Bodies:UL, CSA; Coil Voltage VAC Nom:240V; Coil Voltage VDC Nom:240V; Contact Current AC Max:3A; Contact Voltage AC Max:440V; External Depth:52mm; External Length / Height:58mm; External Width:45mm; Mounting Type:DIN Rail / Panel; Operating Time Range:1.5 to 30s; Supply Voltage AC Max:240V; Supply Voltage AC Min:24V; Supply Voltage DC Max:240VDC; Supply Voltage DC Min:24VDC; Timer Functions:On Delay
