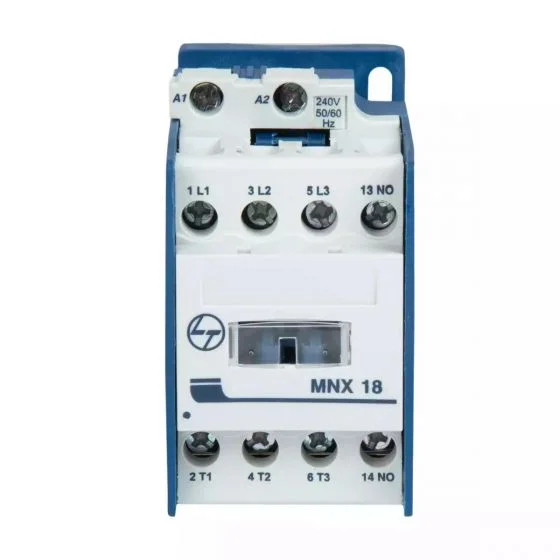

‎L&T (Larsen & Toubro) MNX 18 Power Contactor 415V AC, 3 Pole

Original price was: $15.72.Current price is: $8.73.

Details:

MNX power contactor are mainly used in motor feeder ad control system applications.
The range is availabe from 9A to 650A (AC-3) and provides a relaible performance across diverse condition like high ambient temperature, humidity etc.
Standardized accessories and spares are available for the entire range

Weight	460 g
Dimensions	12.2 × 11.7 × 11.1 cm

Ambient temperature	-20 to 55 degree C
Mechanical Life (No. of operating cycles)	7200 Cy/hr
Rated impulse withstand voltage (Uimp)	8kV
Rated Insulation Voltage Ui (V)	690V
Conformance to Standards	IS/IEC 6094741, IEC 6094741
Coil Voltage	220 V AC
Rated operational current at 415V	18A
No. of Poles	3P
Height(mm)	83
Width(mm)	45
Depth(mm)	88
Rated kW	9.3kW
Rated making capacity	450A
Coil Operating band %Uc (Pick up)	65 – 120 %
Rated breaking capacity	250A
Mechanical Life	15 Million
Coil Operating band %Uc (Drop off)	35 – 50 %
Pick up VA consumption	68VA
Hold on VA consumption	11VA
