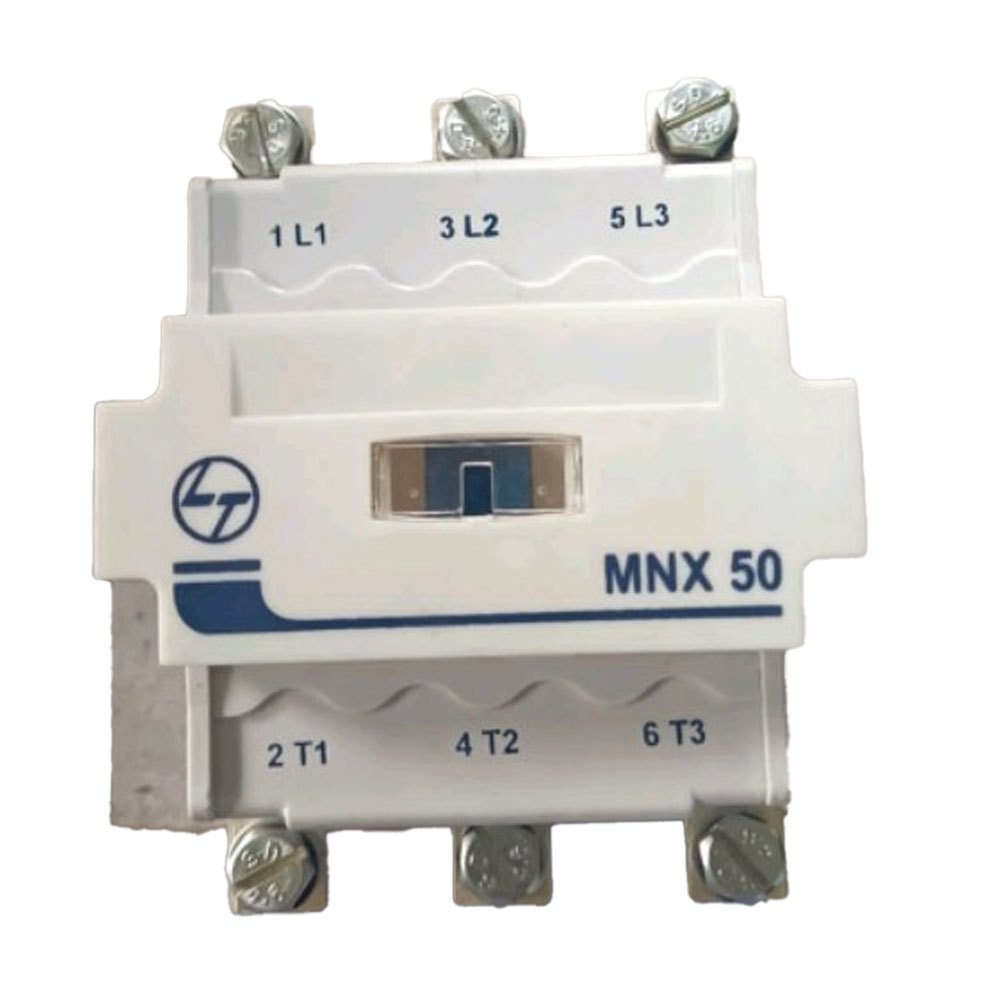

‎L&T (Larsen & Toubro) MNX 50 Power Contactor 415V AC, 3 Pole

Original price was: 81.57 $.Current price is: 36.14 $.

Details:

MNX Contactor 50A 3P 415V AC AC-3 415V AC Coil 50/60 Hz
MNX power contactor are mainly used in motor feeder ad control system applications.
The range is availabe from 9A to 650A (AC-3) and provides a relaible performance across diverse condition like high ambient temperature, humidity etc.
Standardized accessories and spares are available for the entire range

Weight	280 g
Dimensions	10 × 10 × 10 cm

Ambient temperature	-20 to 55 degree C
Mechanical Life (No. of operating cycles)	3600 Cy/Hr
Rated impulse withstand voltage (Uimp)	8kV
Rated Insulation Voltage Ui (V)	690V
Conformance to Standards	IS/IEC 6094741, IEC 6094741
Coil Voltage	415 V AC
Rated operational current at 415V	50A
No. of Poles	3P
Height(mm)	109
Width(mm)	89
Depth(mm)	120.5
Rated kW	26kW
Rated making capacity	900V
Coil Operating band %Uc (Pick up)	80 – 110 %
Rated breaking capacity	750V
Mechanical Life	10 Million
Coil Operating band %Uc (Drop off)	35 – 65 %
Pick up VA consumption	190VA
Hold on VA consumption	21VA
