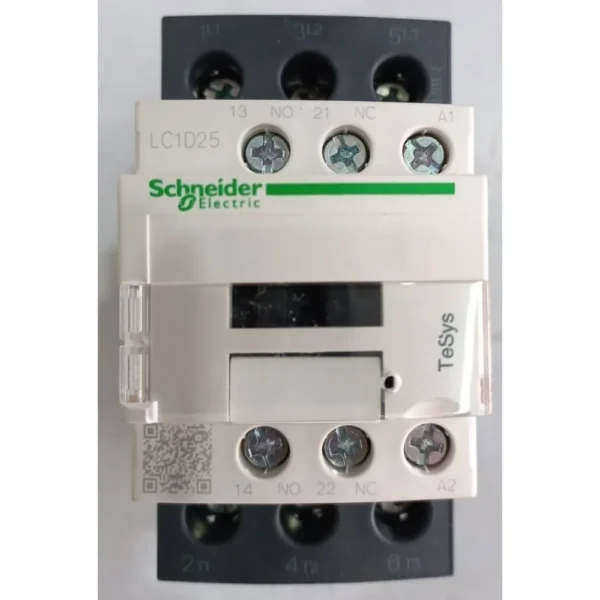

Schneider Electric Lc1D25 Contactor W416455370631 06 Original price was: 140.00 $.Current price is: 70.00 $.
Back to products

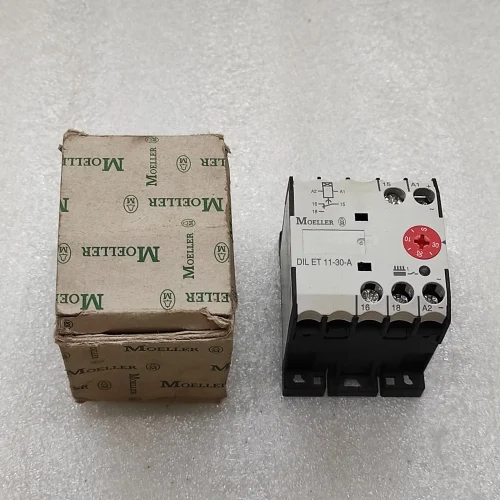

Moeller Dil ET 11-30-A Original price was: 25.00 $.Current price is: 12.00 $.
-50%
Click to enlarge

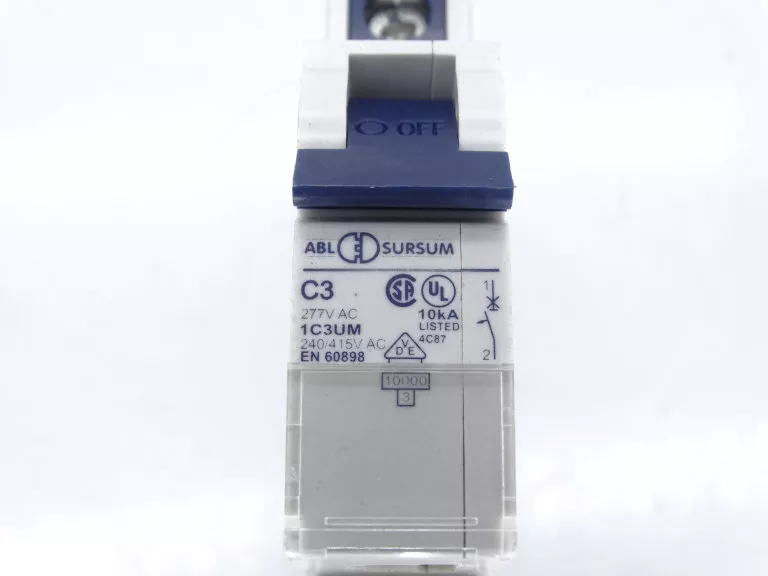

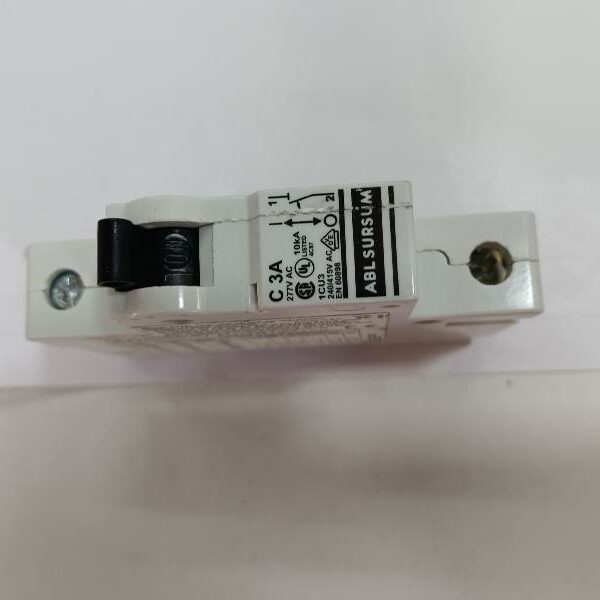

Altech Corp 1C3UM Circuit Breaker

Original price was: 12.00 $.Current price is: 6.00 $.

Details:

Altech UM (V-EA) Circuit Breakers are UL 508-listed manual motor controllers that are suitable for motor disconnects. These DIN-rail-mounted circuit breakers are thermal magnetic and have a width of 17.5mm per pole. The series has a 0.3A to 60A current rating, 277VAC voltage, and 10kA short circuit withstand capacity. Altech UM (V-EA) Circuit Breakers are ideal for AC motor starting, AC general use, AC resistance, AC discharge lamps, and AC incandescent lamp applications.

Weight 144.359 g
Dimensions 17.5 cm
Add to wishlist

Description

Manufacturer: Altech
Product Category: Circuit Breakers
Product: Circuit Breakers
Type: C-Trip
Current Rating: 3 A
Voltage Rating AC: 277 VAC
Voltage Rating DC: 42 VDC
Number of Poles: 1 Pole
Actuator Type: Handle
Minimum Operating Temperature: – 25 C
Maximum Operating Temperature: + 55 C
Illuminated: Non-Illuminated
Brand: Altech
Height: 93.3 mm
Length: 74.7 mm
Mounting Style: DIN Rail Mount
Product Type: C-Trip Circuit Breakers
Subcategory: Circuit Breakers
Termination Style: Box Clamp, Ring Tongue
Voltage Rating: 277 VAC, 42 VDC
Width: 17.5 mm
Unit Weight: 144.359 g
