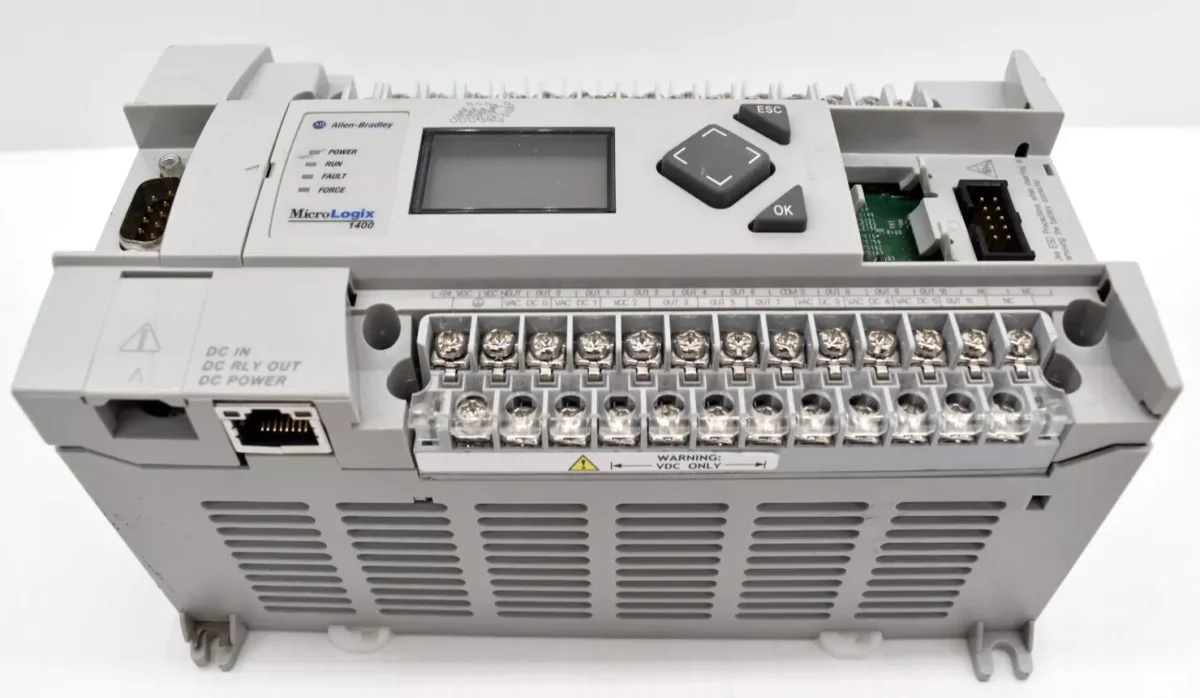

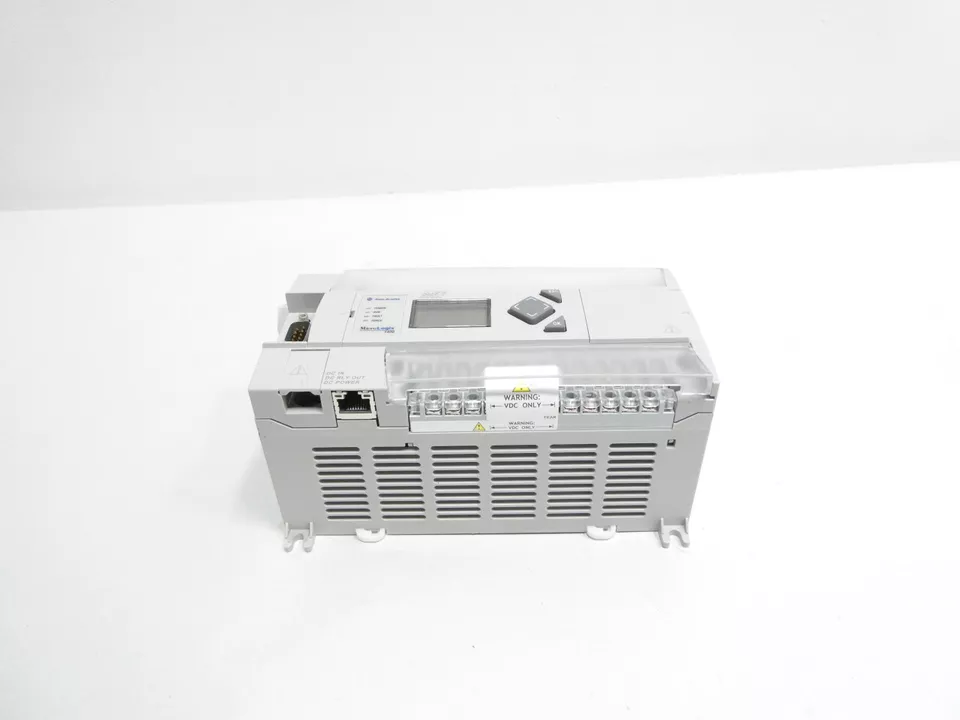

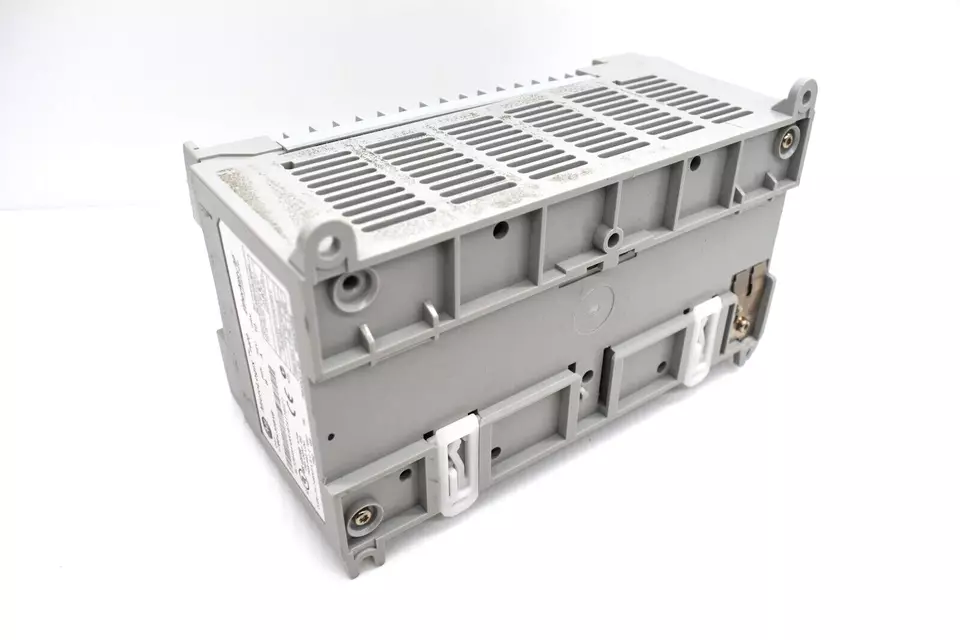

Allen-Bradley Micro Logix 1400 L32BXB

MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital 24V dc inputs, 6 relay outputs, 3 fast 24V dc outputs, 3 normal 24V dc outputs, 24V dc power.

Key Features and Benefits
– Ethernet port provides you with peer-to-peer messaging, Web server, and e-mail capability – Online editing allows you to make modifications to the ladder logic while the program is running – Built-in LCD with backlight allows you to view controller and I/O status, and provides a simple interface for messages, bit/integer monitoring, and manipulation – Expand your application capabilities through the support of up to 7 expansion I/O modules (1762 I/O) with 256 discrete I/O – Up to 6 embedded 100 kHz high-speed counters (on controllers with dc inputs) – 2 Serial ports with DF1/DH485/Modbus RTU/DNP3/ ASCII protocol support – Ethernet port with EtherNet/IP, Modbus and DNP3 protocol support.

I/O Capabilities
If the embedded I/O in the MicroLogix 1400 isn’t enough for your use, add up to seven of the 1762 I/O modules (also used by the MicroLogix 1100 and 1200 controllers) digital and analog expansion modules.

Additional Features
– 10K words of user program memory and 10K words of user data memory – Up to 128K bytes for data logging and 64K bytes for recipe – Program with RSLogix 500 or RSLogix Micro

Applications
– General Industrial Machinery (Material Handling, Packaging, Assembly, etc) – HVAC / Building Automation – SCADA (Oil and Gas, Water/Wastewater, and Electrical Power) – Food and Beverage – Pharmaceutical – Commercial Machinery (Vending, Industrial Washers, and Dryers, etc)
