Original price was: 20.00 $.10.00 $Current price is: 10.00 $.
Details:

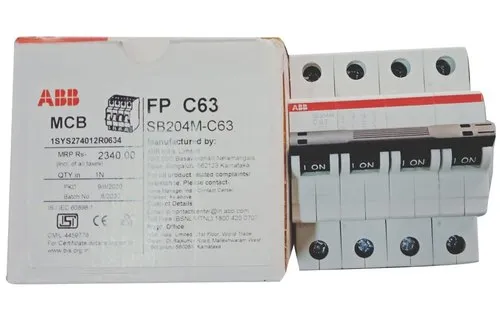

System pro-M compact SB200M Miniature Circuit Breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B, C, D), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 240/415 V AC), and rated currents (up to 63A). All MCBs of the product range SB200M comply with IS/IEC 60898-1, allowing the use for residential, commercial, and industrial applications.
| Weight | 470 g |
|---|---|
| Dimensions | 7 × 8.5 cm |
| No.of Poles | Four Pole |
| Rated Current | 63A |
| Brand | ABB |
| Type | C Curve |
| Breaking Capacity | 10 kA |
| Certification | IS/IEC 60898-1 |
| Frequency | 50 Hz |
| Voltage | 415V AC |
| Model Name/Number | SB204M-C63 |
| Degree Of Protection | IP20 |
| Weight | 0.47 kg |
| Dimension | 70x85x69mm (LxWxH) |
| IP Rating | IP40 |
| Rated Short-Circuit Capacity | 10 kA |
| Rated Impulse Withstand Voltage | 4 kV |
| Rated Service Short-Circuit Breaking Capacity | 10000 A |
| Mechanical Endurance (Nendu): | 20000 cycle |
