Original price was: $130.00.$65.00Current price is: $65.00.
Details:

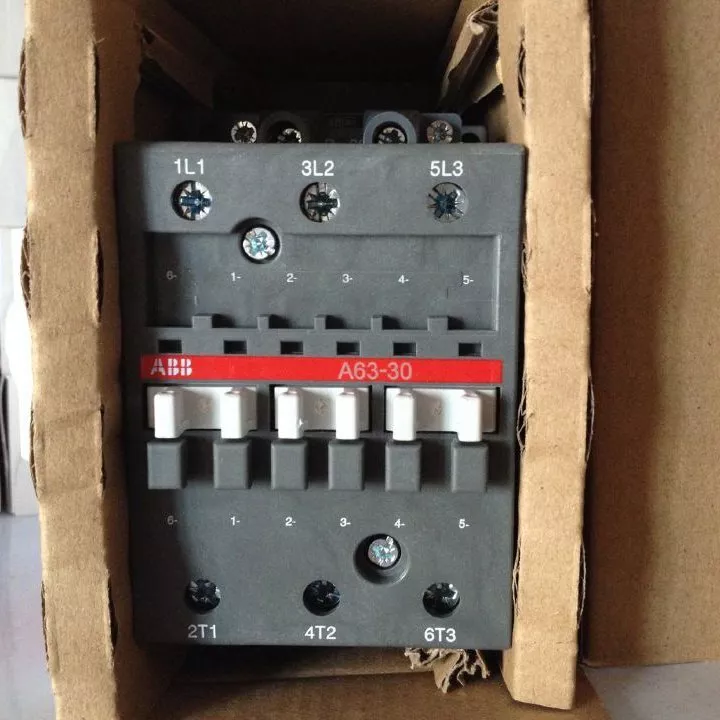

A63 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC / 1000 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting. The A… series 1-stack 3-pole contactors are of the block type design. – Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks – Control circuit: AC operated with laminated magnet circuit – Accessories: a wide range of accessories is available.
| Weight | 1016 kg |
|---|---|
| Dimensions | 10.8 × 7 × 11 cm |
| Model Name/Number | A63-30-00 |
| Brand | ABB |
| Electricity Type | DC |
| Series | A63-30 |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Terminal Type | Screw Terminals |
| Maximum Operating Altitude Permissible | 3000 m |
| Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1 | 8 x Ie AC-3 |
| Net Weight | 1.16 kg |
| Net Width | 70 mm |
| Rated Operational Voltage | Main Circuit 1000 V |
| Net Depth / Length | 108 mm |
| Net Height | 110 mm |
